Writing a Recipe Module

PYME recipes are a way of developing automated analysis pipelines by chaining together building blocks, or recipe modules. Each recipe module reads its input from, and saves it’s output into a common namespace (that looks like a python dictionary). They generally take PYME image or tabular data types (see PYME Data Model) as input, and output and will propagate any relevant metadata.

Anatomy of a recipe module

Recipe modules are classes which derive from PYME.recipes.base.ModuleBase. They must override the execute() method, which takes the recipe namespace (a python dict like object). Recipes are expected to define string parameters defining the names / keys of their input and output data and to draw their input(s) from the recipe namespace using the values of the input parameters as key(s), an store their output(s) back in the namespace using the output name(s) as key(s). A trivial example of a recipe module (which simply echos it’s output) is given below:

from PYME.recipes.base import register_module, ModuleBase, Input, Output

@register_module('Echo')
class Echo(ModuleBase):
    inputName = Input('input')
    outputName = Output('output')

    def execute(self, namespace):
        namespace[self.outputName] = namespace[self.inputName]

Module parameters

Module parameters are defined using Traits. Traits are a form of typed parameter for python which know how to perform validation and, importantly, generate their own GUI. This means that we can simply specify the parameter types and default values, and not have to worry about writing any of the usual ‘glue’ code. A couple of good resources are `http://docs.enthought.com/traits/traits_user_manual/intro.html#what-are-traits`_ and `http://docs.enthought.com/traitsui/tutorials/traits_ui_scientific_app.html`_.

The code below shows an example of a slightly more sophisticated module which uses Traits for it’s parameters. Note that we import the traits from PYME.recipes.traits rather than traits.api 1

from PYME.recipes.base import register_module, ModuleBase
from PYME.recipes.traits import Input, Output, Float, Int, Bool

@register_module('OffsetAndScale')
class OffsetAndScale(ModuleBase):
    inputName = Input('input')
    outputName = Output('output')

    offset = Float(0)
    scale = Float(1.0)

    def execute(self, namespace):
        from PYME.IO.image import ImageStack

        _in = namespace[self.inputName]
        _out = ImageStack(self.scale*(_in.data[:,:,:] - self.offset), mdh=_in.mdh)
        namespace[self.outputName] = _out

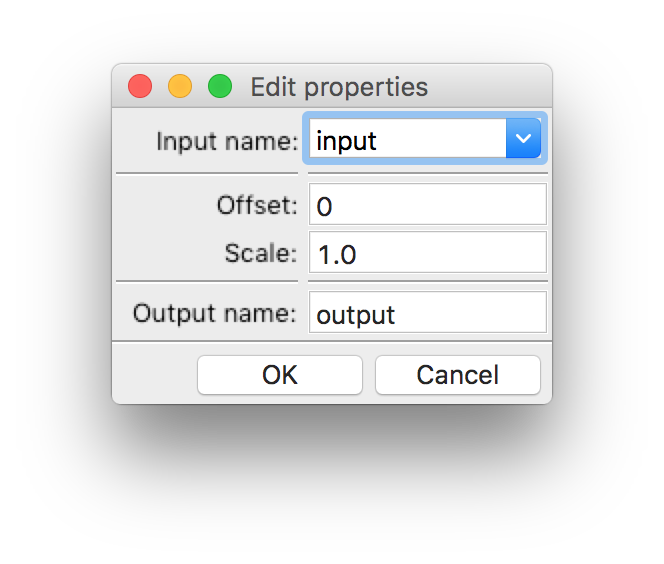

_images/traits_generated_gui.png

Fig. 20 The GUI automatically generated from the above code.

Special parameters - input and output

In addition to general parameters which affect how processing should occur, modules should define input and output variables which specify the name of the input and output data within the recipe namespace. These variables must:

  • start with either ‘input’ or ‘output’

  • use the Input or Output trait types, as defined in recipes.base

Note

Old code (including much of the existing code base) uses CStr for both input and output names, and relies on the names starting with either ‘input’ or ‘output to determine what is an input, what is an output, and what is a standard parameter. Input and Output are very thin wrappers of CStr which permit a more semantic declaration. In the future, we plan on porting all existing code to using the Input and Output traits, and will probably relax the restrictions on naming. For now, modules should conform to both conventions.

Making modules visible

Making recipe modules visible in the recipes GUI is a two step process. Firstly the module should register itself by using the @register_module() decorator, as illustrated above, which takes the display name as a string. Secondly, we have to ensure that the python file code containing the recipe module gets imported. This is currently achieved by adding an appropriate import line to PYME.recipes.modules. In the future a more flexible module discovery and import system is planned.

Customizing Views

If a module has a large number of parameters, it might be appropriate to customize how they are displayed. This can be achieved by using traitsui Views. PYME recipes build on top of traitsui to support two types of view - a default view used when building and configuring a flexible recipe, and a pipeline view which is a simpler view to be used when the parameters of a recipe might want to be configured without effecting connectivity. For this reason, pipeline views hide the Input and Output parameters. To customize either view one should override the PYME.recipes.base.ModuleBase.default_view() or PYME.recipes.base.ModuleBase.pipeline_view() properties.

Warning

In contrast to most of the traitsui example code which shows statically defined views, views within recipe modules must be created dynamically when the view property is accessed. This is to allow recipe modules to be used in cases where a GUI is not present and defining a View would otherwise crash the code (generally generating a fatal error). This is a major limitation with the current implementation of traitsui, but one we have to work around.

This restriction on dynamic creation extends to importing the traitsui module, and one cannot even import the module without crashing in the absence of a GUI. This means that the import statements should be within the dynamic GUI generation function.

An example where a view has been over-ridden (in this case to use a custom editor for one of the parameters) is given below:

@register_module('FilterTable')
class FilterTable(ModuleBase):
    """Create a new mapping object which derives mapped keys from original ones"""
    inputName = Input('measurements')
    filters = DictStrList()
    outputName = Output('filtered')

    def execute(self, namespace):
        inp = namespace[self.inputName]

        map = tabular.resultsFilter(inp, **self.filters)

        if 'mdh' in dir(inp):
            map.mdh = inp.mdh

        namespace[self.outputName] = map

    @property
    def _ds(self):
        try:
            return self._parent.namespace[self.inputName]
        except:
            return None

    @property
    def pipeline_view(self):
        from traitsui.api import View, Group, Item
        from PYME.ui.custom_traits_editors import FilterEditor

        modname = ','.join(self.inputs) + ' -> ' + self.__class__.__name__ + ' -> ' + ','.join(self.outputs)

        return View(Group(Item('filters', editor=FilterEditor(datasource=self._ds)), label=modname))

    @property
    def default_view(self):
        from traitsui.api import View, Group, Item
        from PYME.ui.custom_traits_editors import CBEditor, FilterEditor

        return View(Item('inputName', editor=CBEditor(choices=self._namespace_keys)),
                    Item('_'),
                    Item('filters', editor=FilterEditor(datasource=self._ds)),
                    Item('_'),
                    Item('outputName'), buttons=['OK'])

Footnotes

1

PYME.recipes.traits is a very thin wrapper of traits.api. This wrapper exists for two reasons:

1. To allow us to add new traits such as Input and Output and to subclass individual Traits or even replace the Traits module completely at some point in the future without changing module code.

2. To work hide the fact that the traits module can be found in one of two different locations - either traits.api or enthought.traits.api.
