Quantification

PYMEVisualise includes several quantitative analysis routines, operating both directly on localisation data and on reconstructed images. An incomplete description of some of the most well used options is given below.

Pairwise distances

Pairwise distance histograms are a powerful metric calculated directly from the point data set without the need for reconstruction. They measure the distribution of distances from each point to every other point and can be used for cluster analysis, either through the raw pairwise distance histogram (Analysis‣Clustering‣Pairwise Distance Histogram) or using derived measures such as Ripleys K & L functions (Analysis‣Clustering‣Ripley’s K/L) [kiskowski2009], [nicovich2017]. When applied between two colour channels, they provide a co-localisation (or co-clustering) measure (Analysis‣Pointwise colocalisation) [coltharp2014]. It is also possible to infer some shape features from the pairwise distance histogram [osada2002], [curd2020].

To the best of our knowledge, the algorithms used for calculating pairwise distances histograms in PYMEVisualise are significantly more efficient than existing published options. This is achieved by calculating the histogram on the fly and never storing the full pairwise distance matrix. To give a rough idea, we are 20x faster than the already optimised numpy.histogram(scipy.spatial.pdist(...)) (or equivalent MATLAB calls). We also use several orders of magnitude less memory (memory demand scales as \(O(N)\) rather than \(O(N^2)\) as for pdist()) meaning that we can feasibly compute pairwise distance histograms from much larger datasets (100k points requires ~1.6MB as opposed to ~1GB).

../_images/image_15.png

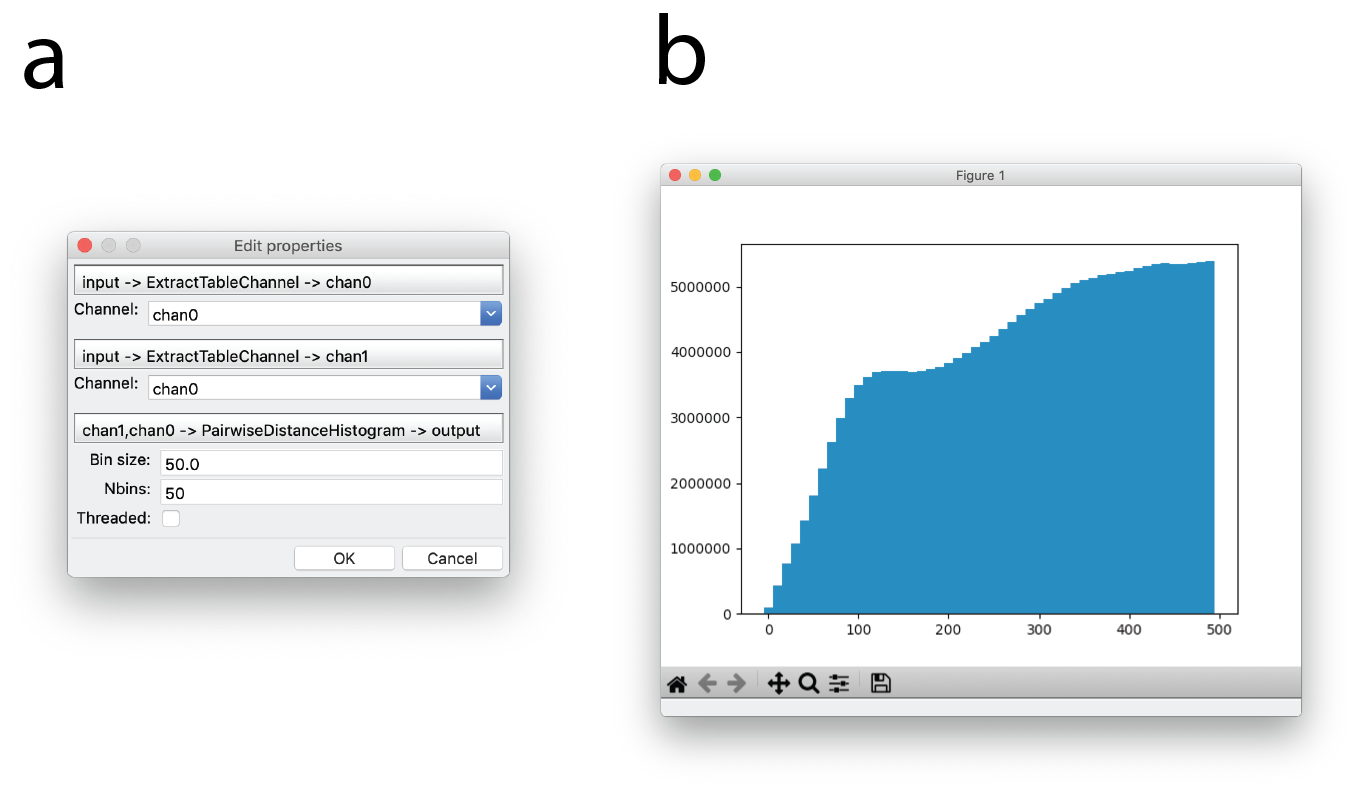

Fig. 9 Pairwise distance histograms. (a) Dialog for generating pairwise distance histograms. (b) Example pairwise distance histogram of sub-ROI of the image in Fig. 2 a with a bin size of 10 and 50 bins. Distance in nanometers is plotted on the x-axis and counts are plotted on the y-axis.

For completeness, it is also possible to calculate a histogram of nearest neighbour distances (Analysis‣Clustering‣Nearest Neighbor Distance Histogram). Whilst somewhat easier to interpret, these tend to be much more susceptible to noise than the full pairwise distance histogram so it is preferable to use the latter where possible.

Single-molecule tracking

PYMEVisualise offers a couple of particle tracking algorithms. The simplest option, suitable for well separated particles, is accessed as follows. Open a dataset containing at least the variables x, y, and t (see Importing data). Navigate in the menu to Analysis‣Tracking‣Track single molecule trajectories. A dialog box will pop up as shown in Fig. 10 a. The maximum distance between two consecutive points which will still be connected as a track is given by ClumpRadiusScale*ClumpRadiusVariable where ClumpRadiusVariable can be any of the fitted parameters/columns or a constant. For particle tracking it makes sense to leave this at it’s default of a constant 1 nm and just alter ClumpRadiusScale. ClumpRadiusScale should be set to a value that is greater than the maximum distance a particle is expected to move within one frame 1, but less than the distance between separate particles. Min clump size refers to the minimum number of points that need to be in a track. Time window is the maximum distance in time between any two consecutive points in a track. Once tracked, the trajectories will display in a tracks layer (see Interactive display) as in Fig. 10 b. Tracks can be optionally colored and/or filtered by variables from the original dataset, by track unique identifier, by track length, and by instantaneous velocity. A slightly more sophisticated tracking algorithm, suitable for denser tracking scenarios, which can use the z-position along with additional features such as particle brightness and shape to improve linkages is available by manually adding the TrackFeatures module to the pipeline (see Editing the pipeline “recipe”).

../_images/image_17.png

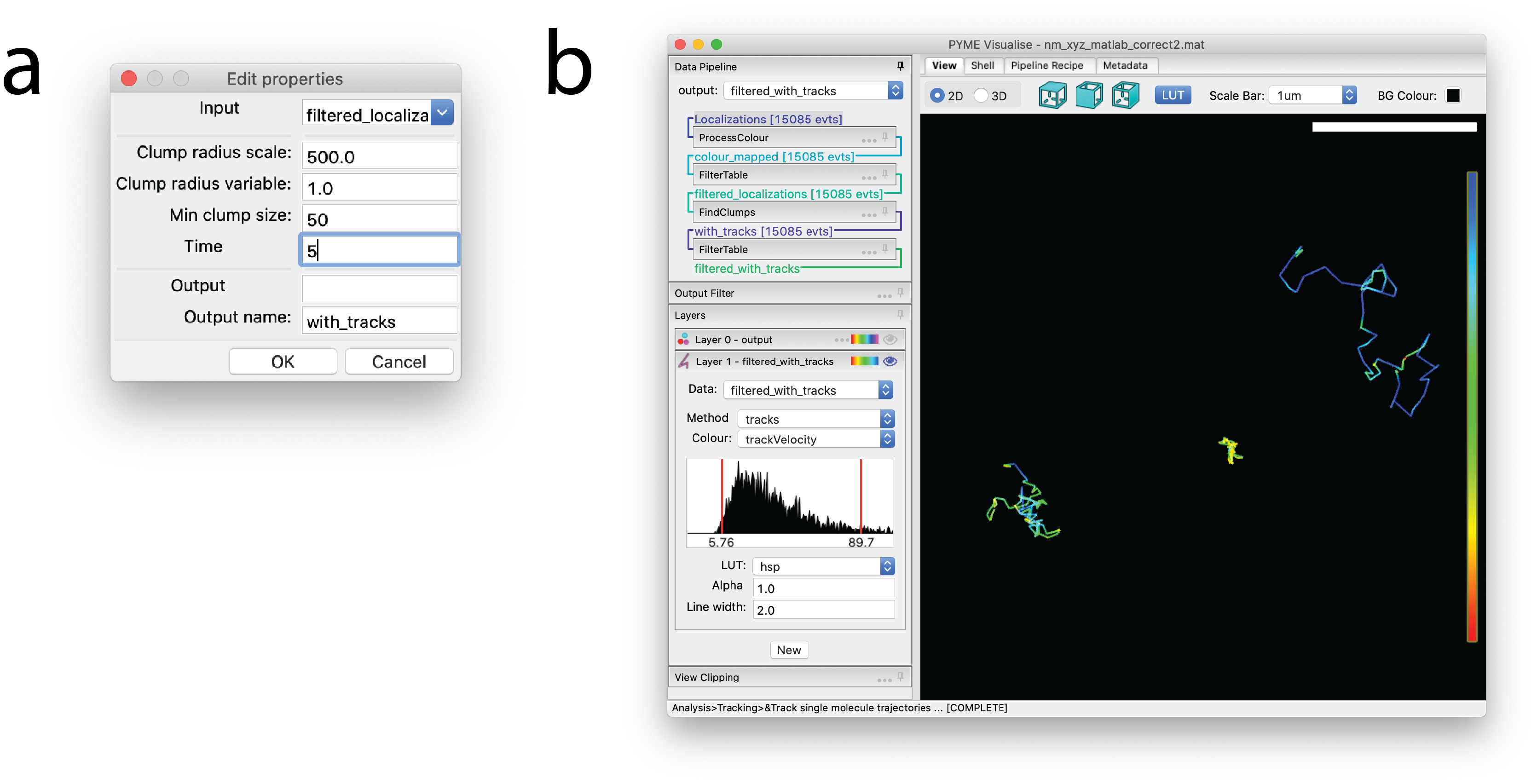

Fig. 10 Tracking Rtn4-SNAP in 2D. (a) Dialog window indicating settings for particle tracking. (b) The resulting trajectories, displayed with constant coloring. The particles giving rise to these trajectories are visible as points in Layer 0, which is hidden in this example, as indicated by the transparent eye.

Other algorithms

QPAINT

Algorithms for ploting and fitting off-time distributions for QPAINT ([jungmann2016])

Chromatic shift calibration

A couple of algorithms (Corrections‣Shiftmaps‣XXX) for calibrating chromatic shifts between colour channels from bead datasets. Mostly used with ratiometric localisation analysis.

Vibration characterisation

Accessed as Extras‣Diagnostics‣Plot vibration spectra, this looks for signatures of instrument vibration in a (rapidly acquired) bead localisation series.
